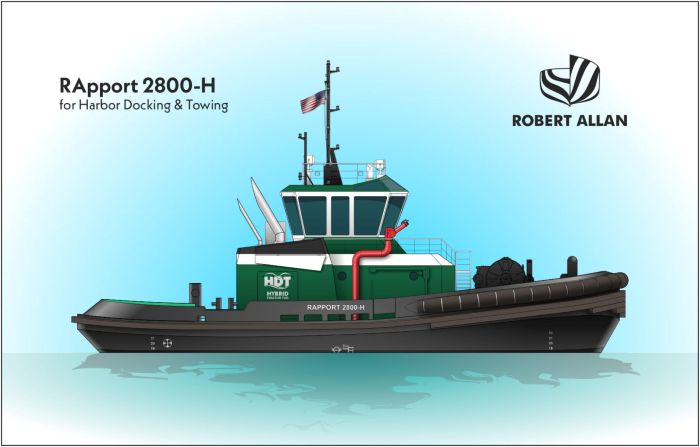

Robert Allan Ltd. is pleased to have completed a new design of RApport 2800-H hybrid ship docking tug for Harbor Docking & Towing of Lake Charles, Louisiana.
- Length overall: 92′
- Breadth, moulded: 40′
- Depth, moulded: 17′
- Draft, navigational: 18′
- Bollard pull ahead: 88 metric tonnes/86 US long tons
The vessel is designed to American Bureau of Shipping (ABS) rules with the following Class Notation:
A1 Escort Tug, Towing Service, FFV 1, Waterspray, AMS, UWILD, QR
The accommodations are outfitted for a crew of up to 6 with two double cabins and two single cabins.
The propulsion system of the RApport 2800-H utilizes a pair of Cummins QSK60-M diesel engines, rated at 2700 HP (2013 kW) at 1800 RPM coupled with a pair of electric motors, rated at 800 HP (600 KW) coupled to a pair of Kongsberg US255S FP Twin Input Z-drives units. These can be powered in four modes:
- “Eco” mode for standby and transit using only the two 800 HP (600 kW) electric motors
- “Hybrid” mode for full power maneuvers using both the diesel engines and electric motors
- “Mechanical” mode using only the main diesel engines
- “FiFi” mode combining “Eco” mode for maneuvering with one main engine PTO powering the FiFi system
Electrical power is supplied by two large Cummins QSM19 diesel generator sets, ensuring redundancy and reliable operation for all onboard systems during towing operations. A smaller Cummins QSM11 generator will be used for lower load operation and harbor use.
To provide maximum flexibility in various contracts the forward deck structure is designed to accommodate either a 75HP or 100HP model DMT towing winch.
Due to the high ambient temperatures in the Gulf Coast, larger than typical ventilation systems are fitted which should minimize engine room temperatures.
Ockerman Automation will be designing and integrating the hybrid propulsion system and electrical control system for the vessel. The vessel will be constructed by C&C Marine and Repair, Belle Chasse, LA.
